Compact and modular air filtration system
Nodora CAT™

The ultimate solution for efficient H2S removal

The Nodora CAT™ are modular, compact air treatment systems and solutions specifically designed to remove high and medium loads of H2S (hydrogen sulfide), taking into account airflow, pollution load, while retaining extremely low pressure drops compared to other air treatment units. The H2S removal system shares the same unique features as the Nodora ADS™ product series, including exchangeable cassettes and compatibility with ductwork.

The compact design and industrial-grade, high-performance odor treatment capabilities of the Nodora CAT™ open up new possibilities for planners and consultants.

Nodora CAT™ series

The Nodora ADS™ & CAT series can be configured in a variety of combinations. Units can be installed in parallel or in-line. The Nodora CAT™ series is specially designed for catalytic conversion of high hydrogen sulfide concentrations and is based on the same unique characteristics of Nodora ADS™. Nodora CAT’s™ H₂S conversion efficiency is superior to other solutions on the market and can be combined with Ozonetech turn-key ozone systems for H₂S removal if concentrations and air flows are high. Its robust stainless steel construction makes it suitable for a variety of on-site conditions.

The Nodora CAT™ series multi-unit installations can be configured in series or in parallel, depending on pressure drop or air flow capacity requirements. It can handle both continuous or intermittent flows with sustained performance. Our qualified engineers are always there to help you determine your requirements, appropriate placement, and the final selection of units or systems with the right capacity that will provide you the best cost of ownership. Contact us today.

Read more about the Nodora CAT™ series in our brochure here.

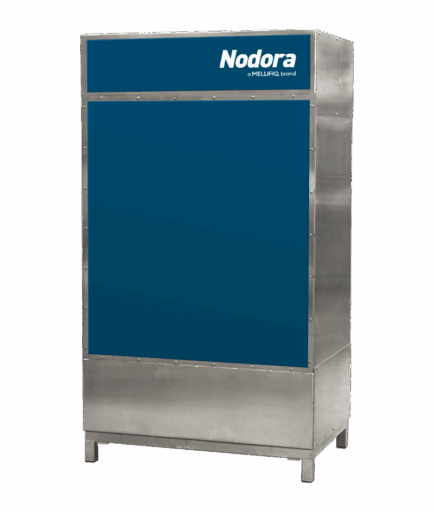

The fron view of Nodora Ads filtration system
Technical specification Nodora CAT A-series™ Nodora CAT B-series™ Datasheet
Air flow 200 – 2,400 m³/h 500 – 4,800 m³/h Datasheet
Temperature 0 – 80 °C 0 – 80 °C
Application H2S removal H2S removal
Pressure drop across media cassettes¹ 50 – 300 Pa 50 – 300 Pa
Relative humidity 0 – 95% RH 0 – 95% RH
Material SS 304/EN 1.4301 stainless steel, EPDM (FKM optional) SS 304/EN 1.4301 stainless steel, EPDM (FKM optional)
Connections
Inlet/outlet connection (WxH) 754 x 380 or 1,154 x 380 mm 754 x 380 or 1,154 x 380 mm
Connection type Flange Flange
Dimensions
Module size (WxDxH) 1,160 x 760 x 2,070 mm 1,160 x 1,520 x 2,070 mm
Weight 750 kg (1,653 lbs) 1500 kg (3,306 lbs)

¹Varies depending on multiple factors such as media, operating conditions etc.

Flexible configuration

Nodora air filtration system offers a variety of options and combinations that easily match our customers’ required capacity. Our systems can be configured as both standalone solutions and as part of more complex and integrated solutions, combining various air treatment technologies, such as ozone technology.

The Nodora modules are easily coupled back-to-back and side-to-side, with flexible air intake and outlet using removable side panels. The combination of a compact design and industrial grade, high-performance odor treatment enables new and unexpected options for planners, designers, and consultants.

The system fits all industrial applications and with its extremely compact and space saving design. The Nodora CAT™ air filtration system offers a ratio to treatment capability and cost of ownership that no other filtration system on the market can meet.

Showcasing how the filtration modules can be placed next to eachother

Refillable cassette-based design

The Nodora system has a cassette-based design, that are refillable, and enables a more convenient exchange of filtration media than ever before in ratio to its treatment capacity and overall costs of ownership. All Nodora advanced air filtration products, components and solutions are easily scalable, serviced and maintained.

Three air filter cassettes placed inside the module

Introducing the Nodora ADS™ & CAT series
